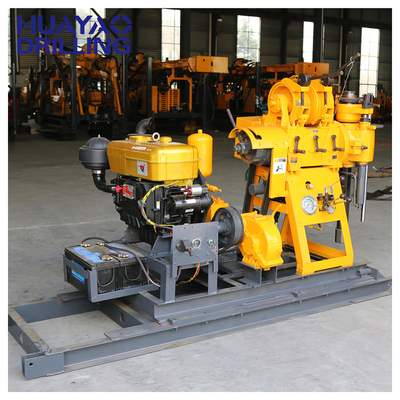

Construction material stores crawler mounted water well drilling rig borewell drilling rig price oil drilling rig

Construction material stores crawler mounted water well drilling rig borewell drilling rig price oil drilling rig
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Βασικές πληροφορίες
Πληρωμής & Αποστολής Όροι
Περιγραφή προϊόντων
Product Information

1.Feature Of Product

1. It has a hydraulic automatic feed mechanism to improve drilling efficiency and reduce labor intensity of workers. 2. The ball clamp clamping mechanism is used instead of the chuck, and the lever can be reversed without stopping the machine. The operation is convenient, safe and reliable. 3. The hoist is equipped with a cage to form a double-sided support star wheel structure, which can withstand strong impacts. 4. The four sets of bearings in the vertical axle box are positioned to ensure that the gyrator has sufficient rigidity to cope with complex geological conditions such as gravel layer and pebble layer. 5. This machine adopts a taper clutch, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance-free.

2.Scope Of Application

1. This drilling rig is a high-speed drilling rig suitable for general survey exploration, geophysical exploration, road and construction exploration and blast hole drilling projects. 2. Drill bits such as alloys, diamonds and composite chips can be used for drilling according to the different bottom layers. 3. It can drill sandy clay and rock formations of grade 2-9.
Specification






Tech parameter
Model
XY-200
Drilling depth(m)
200
Open hole dia.(mm)
325
End hole dia.(mm)
75
Drill rod dia.(mm)
42-60
Drill angle(°)
90-75
Matching power（kw）
15
Weight without power（kg）
1150
Dimension（m）
2.7*0.9*1.6



Spindle
Speed（r/min）
64/128/287/557
Stroke(mm)
450
Max. torque（N.m）
2200
Thrust (k.N)
40
Lifting force (k.N)
60



Winch
Single rope lift force(kg)
2400
Lifting speed Head(m/min)
0.12-0.95
Rope dia.(mm)
φ12.5
Roll capacity(m)
35

Drill Mast
Rated load(ton)
5
Height(m)
6



Mud pump
Dispalcement(L/min)
145
Max.pressure(Mpa)
2
Number of Reciprocations （times/min）
93
Inlet hose dia.（mm）
51
Outlet hose dia.（mm）
32
Customer Feedback
Certifications
Company Profile
Shandong Huayao Construction Machinery Co,. Ltd was found in 2020, is an exclusive overseas distributor of LGMG brand, a sub-brand of SDLG . It is located in China's small construction machinery distribution center-Jining city, shandong province, mainly engaged in water well drilling rig, wheel loader, wheel excavator, small road roller, small excavator etc. With a registered capital of RMB 50 million, the company mainly provides a complete set of drilling machinery and construction road machinery solutions for domestic and foreign projects and mine construction. Shandong Huayao Construction Machinery Co., Ltd pays great attention to the credit, keeps the contract, and ensures product quality, has gained the trust of customers in the principle of small profits but quick turnover.
